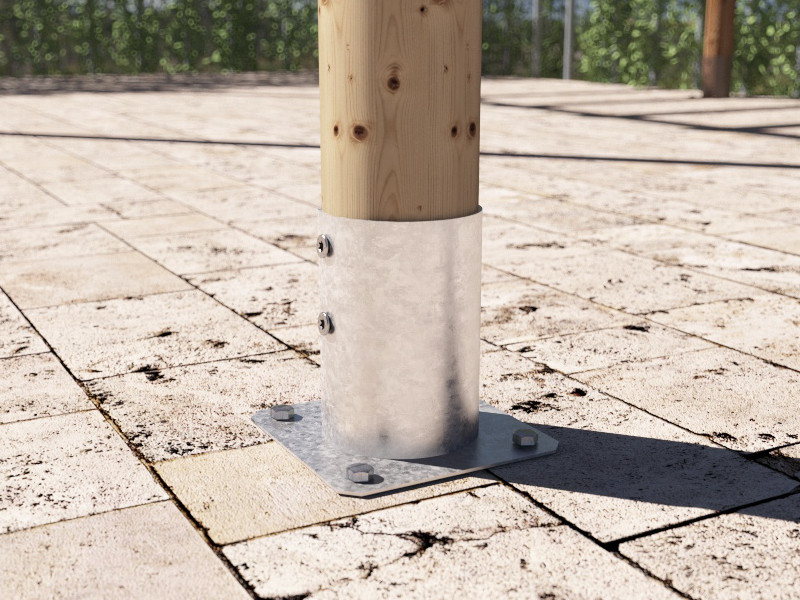

application-pied-de-poteau-emboîtable-f20

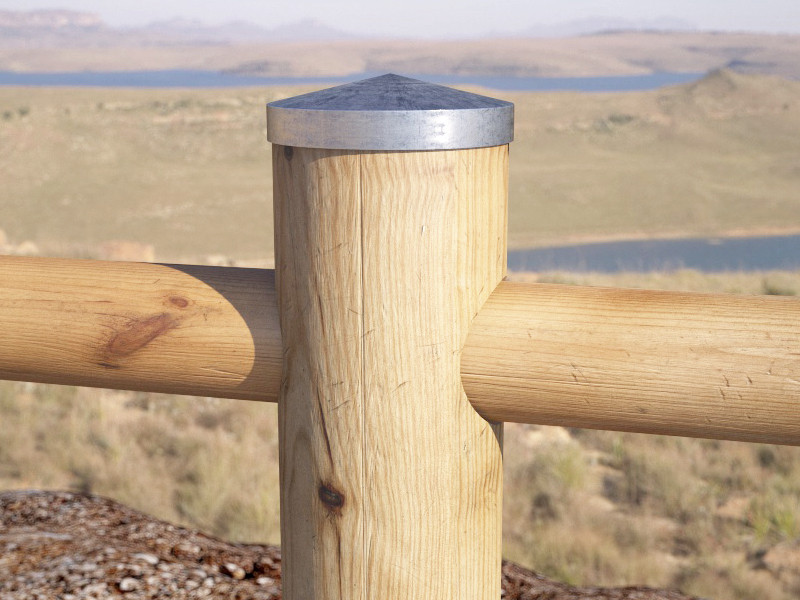

application-chapeaux-couvre-poteaux-hut-round

application-pied-de-poteau-emboîtable-typ-f-fd-m

application-pied-de-poteau-à-enfoncer-m70-r

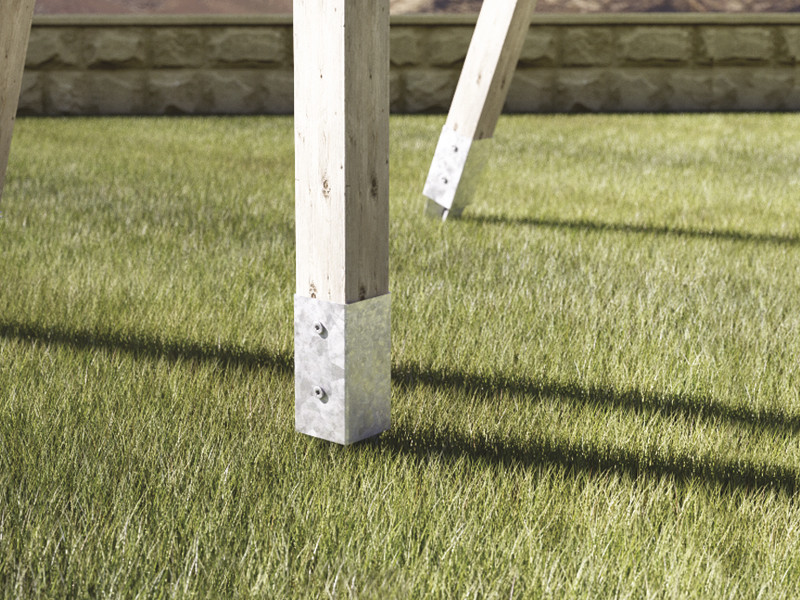

application-pied-de-poteau-à-enfoncer-m70-s

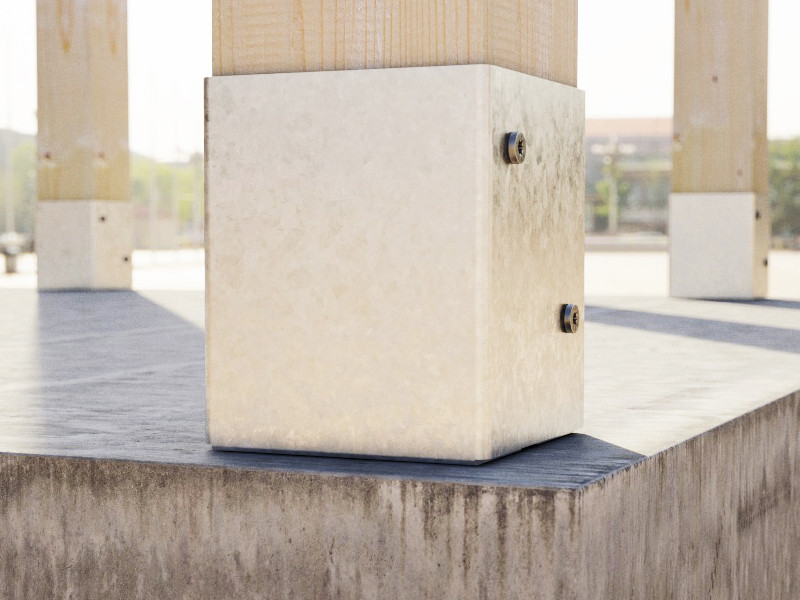

application-pied-de-poteau-avec-base-invisible-f11

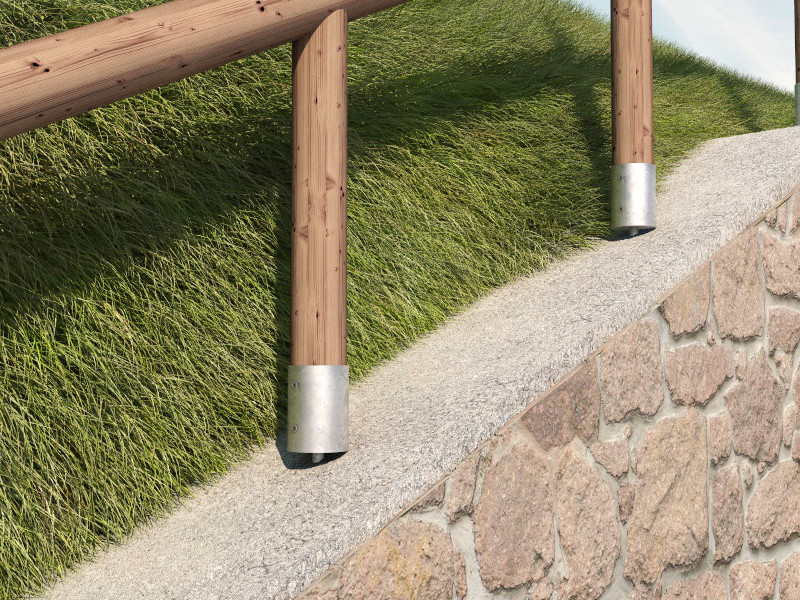

application-pied-de-poteau-à-sceller-m50

application-pied-de-poteau-à-sceller-m53

application-pied-de-poteau-inclinable-s40

TYP F-FD-M

PIEDS DE POTEAU MIXTES

Gamme complète de solutions pour poteaux, palissades ou clôtures, capable de satisfaire tous les besoins en termes de taille du poteau et de forme (rectangulaire, carrée et ronde).

Toutes les versions sont adaptées à l’utilisation en classes de service 1, 2 et 3, certaines avec zingage à chaud, d’autres en acier inox A2 | AISI304 ou peintes en marron ou noir graphite. Certaines versions peuvent être fixées sur le béton, d’autres sont équipées d’une barre à sceller dans la coulée de béton, et d’autres encore peuvent être enfoncées dans le sol.

Elles répondent toutes aussi bien aux besoins du charpentier qu’à ceux des amateurs.

Contacter l'agent

Documentation
Codes et dimensions

Documentation

Fiche technique

Choisir une langue
Certification ETA

Choisir une langue

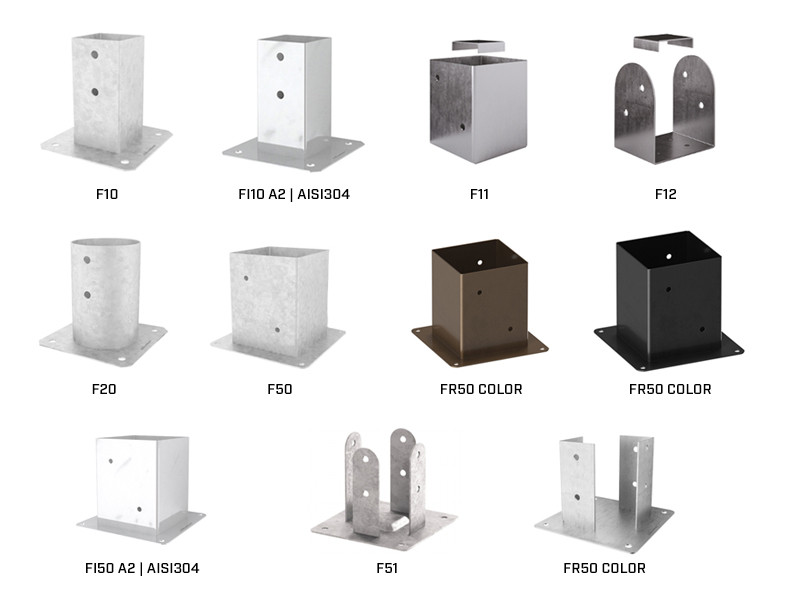

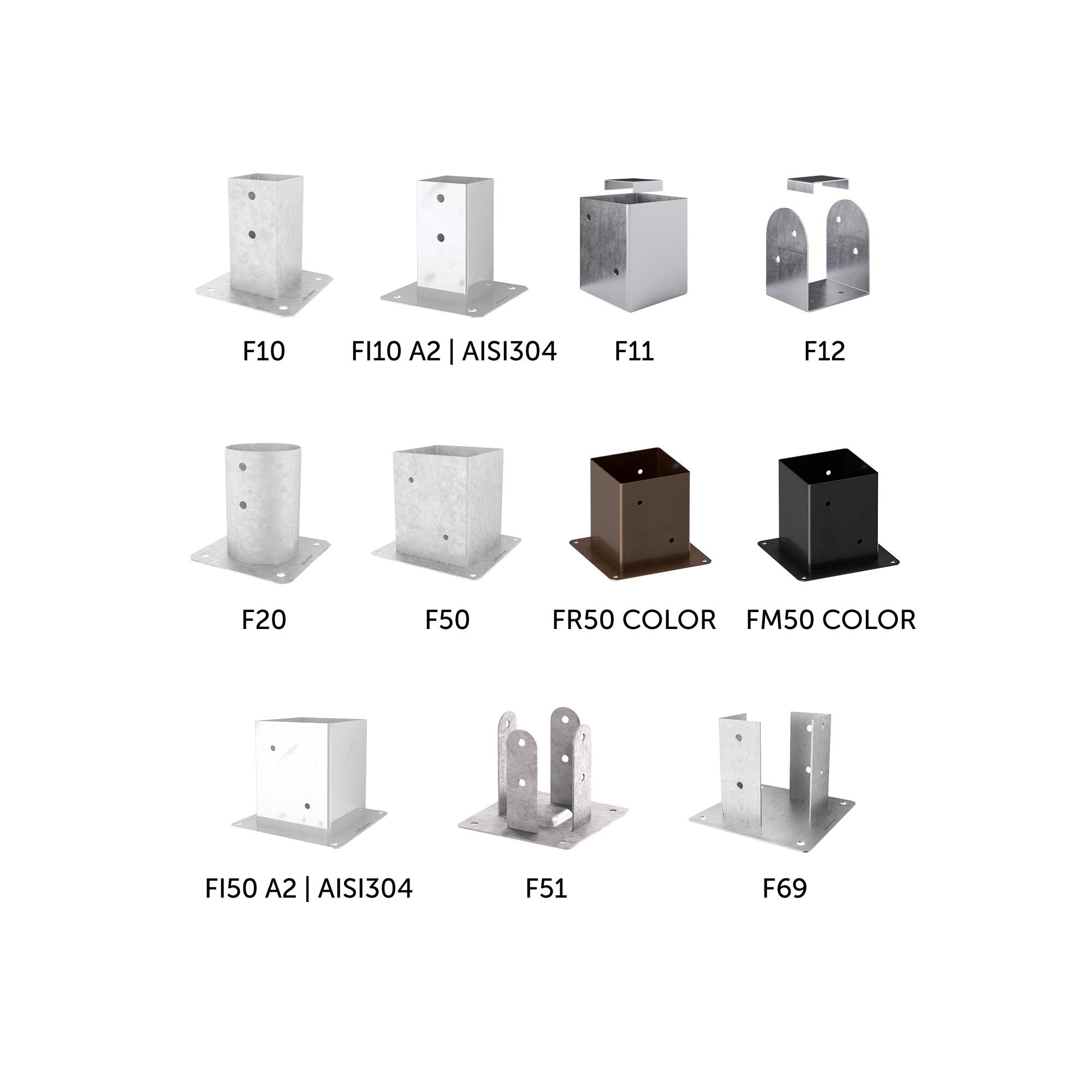

F10

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
F1070	71	71	150	2	2 13/16''	2 13/16''	6''	0.079	1
F1080	81	81	150	2	3 3/16''	3 3/16''	6''	0.079	1
F1090	91	91	150	2	3 9/16''	3 9/16''	6''	0.079	1

FI10 A2 | AISI304

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.	DOP
FI1070	71	71	150	2	2 13/16''	2 13/16''	6''	0.079	1
FI1090	91	91	150	2	3 9/16''	3 9/16''	6''	0.079	1

F11

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
F1190	91	91	150	2.5	3 9/16''	3 9/16''	6''	0.098	1
F11100	101	101	150	2.5	4''	4''	6''	0.098	1
F11120	121	121	150	2.5	4 3/4''	4 3/4''	6''	0.098	1
F11140	141	141	200	3	5 9/16''	5 9/16''	8''	0.118	1
F11160	161	161	200	3	6 5/16''	6 5/16''	8''	0.118	1

F12

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
F1270	72	60	100	2.5	2 13/16''	2 3/8''	4''	0.098	1
F1280	82	60	100	2.5	3 1/4''	2 3/8''	4''	0.098	1
F1290	92	70	120	2.5	3 5/8''	2 3/4''	4 3/4''	0.098	1
F12100	102	80	120	2.5	4''	3 1/8''	4 3/4''	0.098	1
F12120	122	100	140	2.5	4 13/16''	4''	5 1/2''	0.098	1
F12140	142	120	160	3	5 9/16''	4 3/4''	6 1/4''	0.118	1
F12160	162	140	180	3	6 3/8''	5 1/2''	7 1/8''	0.118	1

F20

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
F2080	Ø81	150	2	1
F20100	Ø101	150	2	1
F20120	Ø121	150	2	1
F20140	Ø141	150	2	1

F50

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
F50100	101	101	150	2.5	4''	4''	6''	0.098	1
F50120	121	121	150	2.5	4 3/4''	4 3/4''	6''	0.098	1
F50140	141	141	150	2.5	5 9/16''	5 9/16''	6''	0.098	1
F50160	161	161	200	2.5	6 5/16''	6 5/16''	8''	0.098	1
F50180	181	181	200	2.5	7 1/8''	7 1/8''	8''	0.098	1
F50200	201	201	200	2.5	8''	8''	8''	0.098	1

FR50 COLOR

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
FR50100	101	101	150	2.5	4''	4''	6''	0.098	1
FR50120	121	121	150	2.5	4 3/4''	4 3/4''	6''	0.098	1

FM50 COLOR

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
FM50100	101	101	150	2.5	4''	4''	6''	0.098	1
FM50120	121	121	150	2.5	4 3/4''	4 3/4''	6''	0.098	1
FM50160	161	161	200	2.5	6 5/16''	6 5/16''	8''	0.098	1
FM50200	201	201	200	2.5	8''	8''	8''	0.098	1

FI50 A2 | AISI304

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
FI50100	101	101	150	2.5	4''	4''	6''	0.098	1
FI50120	121	121	150	2.5	4 3/4''	4 3/4''	6''	0.098	1
FI50140	141	141	150	2.5	5 9/16''	5 9/16''	6''	0.098	1
FI50160	161	161	200	2.5	6 5/16''	6 5/16''	8''	0.098	1
FI50200	201	201	200	2.5	8''	8''	8''	0.098	1

F51

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
F51120	121	121	150	3	4 3/4''	4 3/4''	6''	0.118	1
F51140	141	141	200	3	5 9/16''	5 9/16''	8''	0.118	1
F51160	161	161	200	4	6 5/16''	6 5/16''	8''	0.157	1
F51200	201	201	225	4	8''	8''	8 7/8''	0.157	1

F69

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
F69100	101	101	150	2.5	4''	4''	6''	0.098	1
F69120	121	121	150	2.5	4 3/4''	4 3/4''	6''	0.098	1
F69160	161	161	200	3	6 5/16''	6 5/16''	8''	0.118	1
F69200	201	201	220	3	8''	8''	8 5/8''	0.118	1

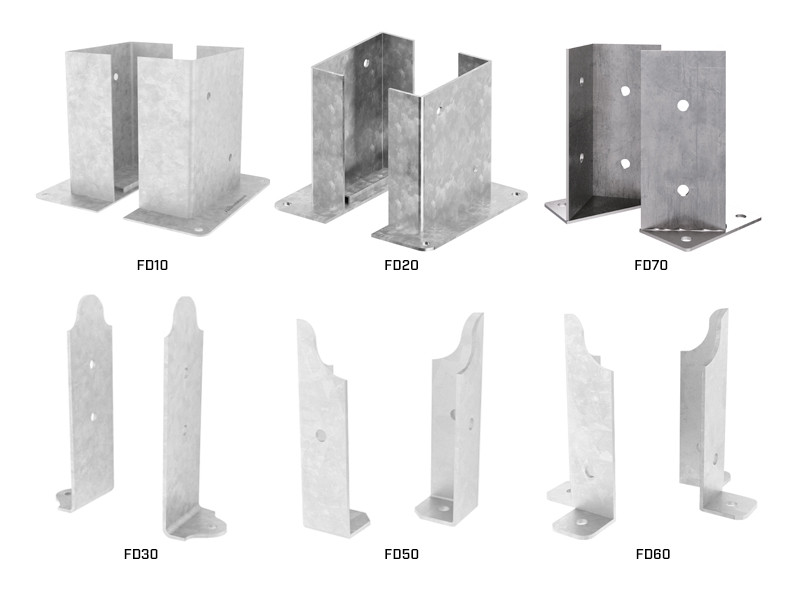

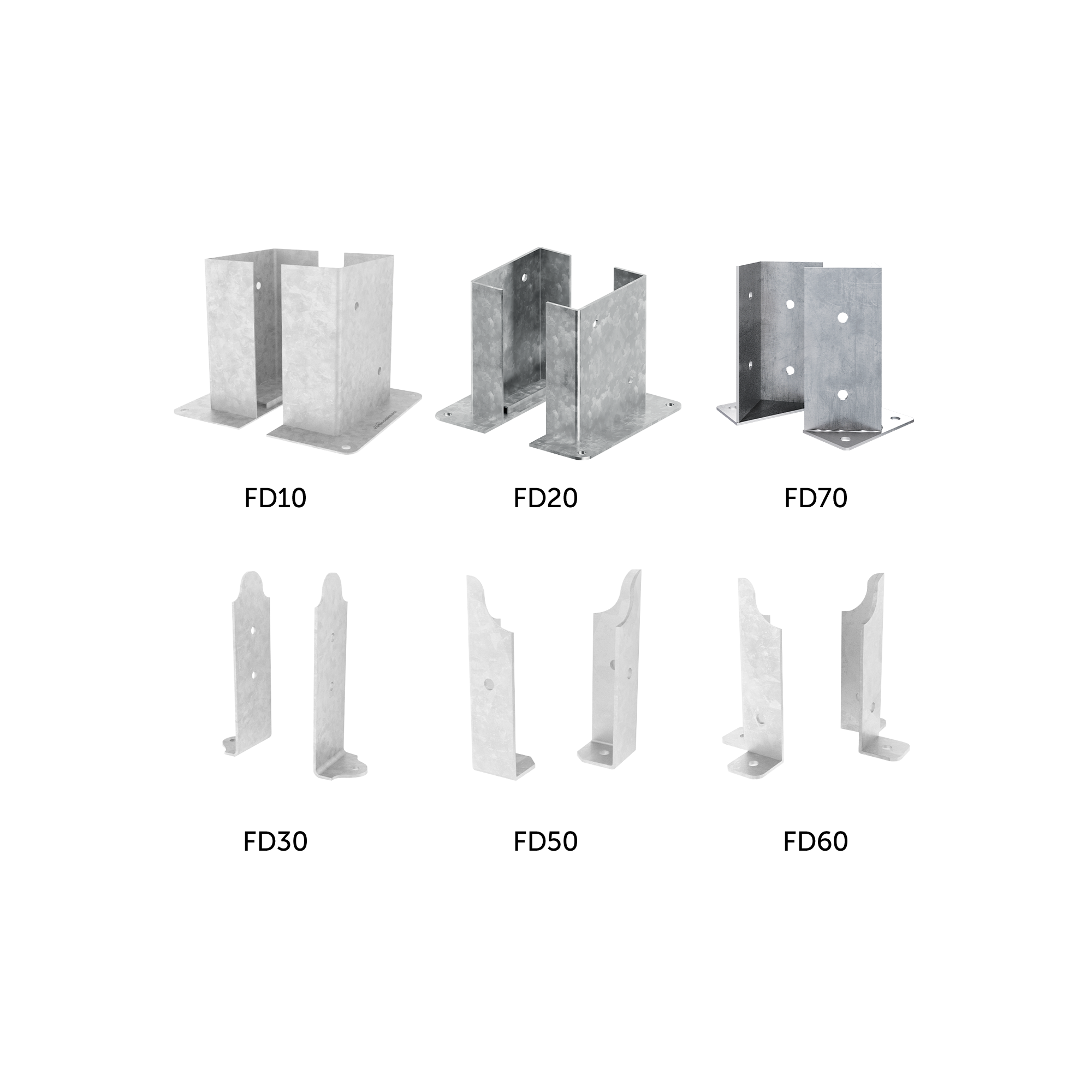

FD10

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
FD10120	121	56	200	2.5	4 3/4''	2 3/16''	8''	0.098	1
FD10140	141	66	200	2.5	5 9/16''	2 5/8''	8''	0.098	1
FD10160	161	76	200	2.5	6 5/16''	3''	8''	0.098	1
FD10180	181	86	200	2.5	7 1/8''	3 3/8''	8''	0.098	1
FD10200	201	96	200	2.5	8''	3 3/4''	8''	0.098	1

FD20

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
FD20120	121	38	200	4	4 3/4''	1 1/2''	8''	0.157	1
FD20140	141	46	200	4	5 9/16''	1 13/16''	8''	0.157	1
FD20160	161	54	200	4	6 5/16''	2 1/8''	8''	0.157	1
FD20200	201	66	200	4	8''	2 5/8''	8''	0.157	1

FD30

CODE	B [mm]	H [mm]	s [mm]	pcs.	DOP
FD3060	60	180	4	1
FD3080	80	240	4	1

FD50

CODE	B [mm]	H [mm]	s [mm]	pcs.	DOP
FD5050	46	185	4	1
FD5080	76	220	4	1

FD60

CODE	B [mm]	H [mm]	s [mm]	pcs.	DOP
FD6050	46	185	4	1
FD6080	76	220	4	1

FD70

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
FD7080	81	81	180	3	3 3/16''	3 3/16''	7 1/8''	0.118	1
FD70100	101	101	220	3	4''	4''	8 5/8''	0.118	1

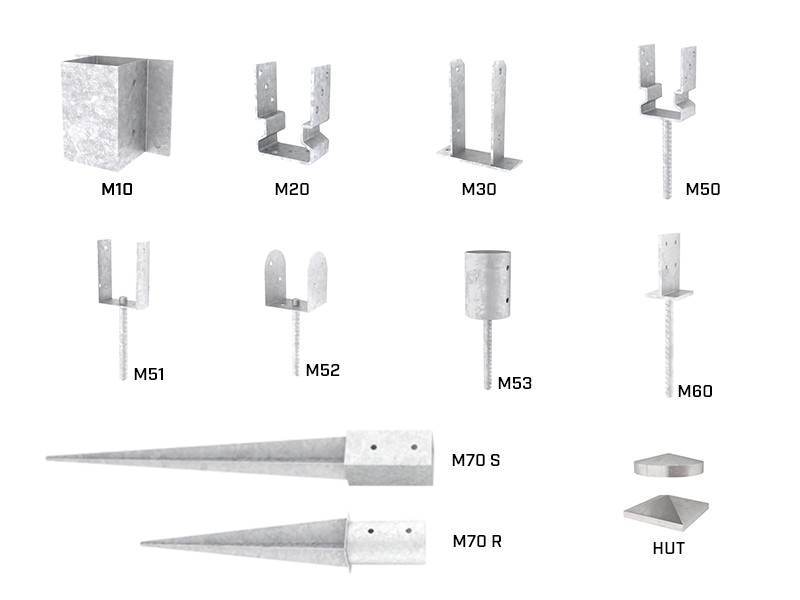

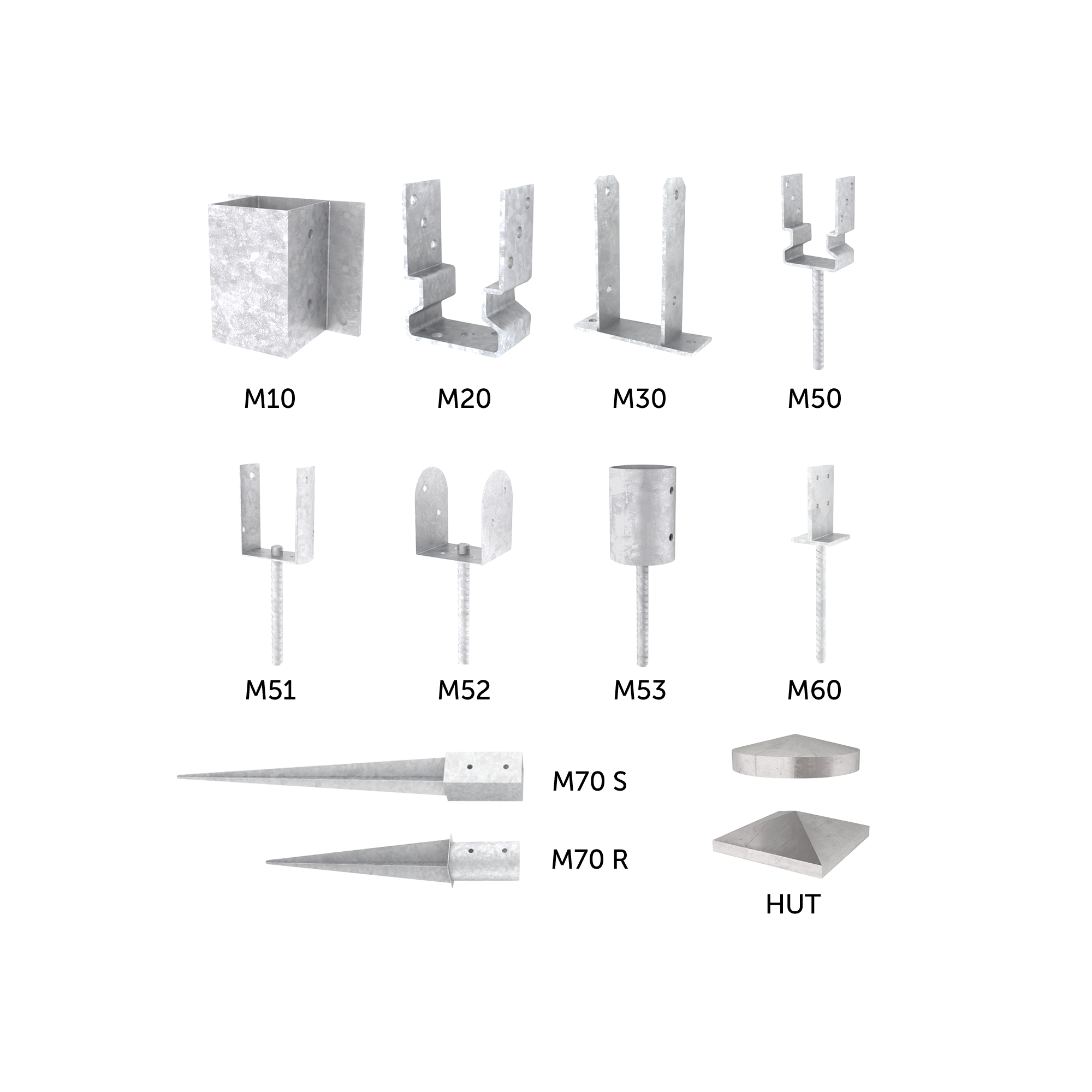

M10

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
M1070	71	71	150	2	2 13/16''	2 13/16''	6''	0.079	1
M1090	91	91	150	2	3 9/16''	3 9/16''	6''	0.079	1

M20

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
M2070	71	60	150	5	2 13/16''	2 3/8''	6''	0.197	1
M2090	91	60	150	5	3 9/16''	2 3/8''	6''	0.197	1
M20100	101	60	150	5	4''	2 3/8''	6''	0.197	1
M20120	121	60	150	5	4 3/4''	2 3/8''	6''	0.197	1

M30

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.	DOP
M3070	71	50	200	5	2 13/16''	1 15/16''	8''	0.197	1
M3080	81	50	200	5	3 3/16''	1 15/16''	8''	0.197	1
M3090	91	50	200	5	3 9/16''	1 15/16''	8''	0.197	1
M30100	101	50	200	5	4''	1 15/16''	8''	0.197	1
M30120	121	50	200	5	4 3/4''	1 15/16''	8''	0.197	1	-

M50

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
M5070	71	60	150	5	2 13/16''	2 3/8''	6''	0.197	1
M5090	91	60	150	5	3 9/16''	2 3/8''	6''	0.197	1
M50100	101	60	150	5	4''	2 3/8''	6''	0.197	1
M50120	121	60	150	5	4 3/4''	2 3/8''	6''	0.197	1

M51

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
M51100	Ø101	150	3	1
M51120	Ø121	150	3	1

M52

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
M5290	91	70	120	2.5	3 9/16''	2 3/4''	4 3/4''	0.098	1
M52100	101	80	120	2.5	4''	3 1/8''	4 3/4''	0.098	1
M52120	121	100	140	2.5	4 3/4''	4''	5 1/2''	0.098	1

M53

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
M5380	Ø81	150	3	1
M53100	Ø101	150	3	1
M53120	Ø121	150	3	1

M60

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.	DOP
M6080	80	80	130	8	3 1/8''	3 1/8''	5 1/8''	0.315	1

M70 S

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
M70S70	71	71	150	2	2 13/16''	2 13/16''	6''	0.079	1
M70S90	91	91	150	2	3 9/16''	3 9/16''	6''	0.079	1
M70S100	101	101	150	2	4''	4''	6''	0.079	1
M70S120	121	121	150	2	4 3/4''	4 3/4''	6''	0.079	1

M70 R

CODE	Ø [mm]	H [mm]	s [mm]	pcs.
M70R80	Ø81	150	2	1
M70R100	Ø101	150	2	1
M70R120	Ø121	150	2	1

S40

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
S4070	71	60	100	5	2 13/16''	2 3/8''	4''	0.197	1
S4090	91	60	100	5	3 9/16''	2 3/8''	4''	0.197	1

HUT

CODE	pcs.
HUTS70	10
HUTS90	10
HUTS100	10
HUTS120	10
HUTR80	10
HUTR100	10
HUTR120	10
