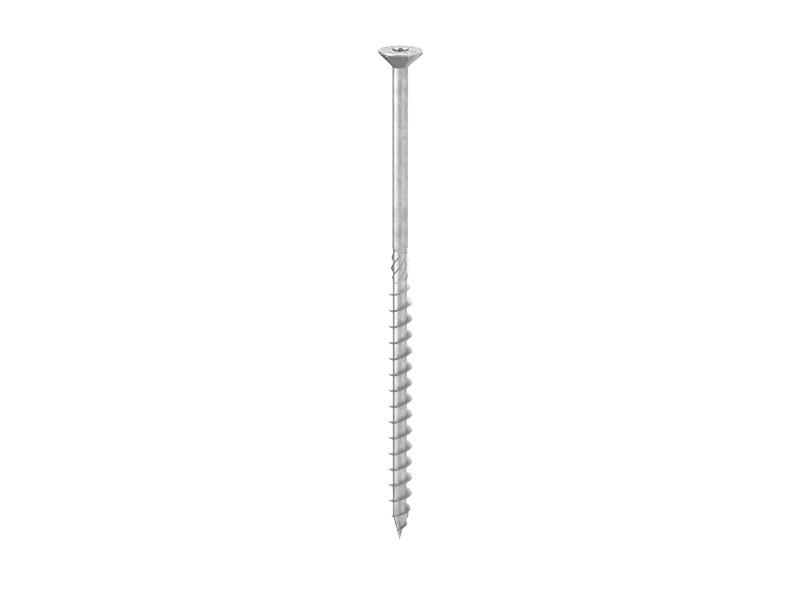

HBS EVO C5
VIS À TÊTE FRAISÉE
CORROSIVITÉ ATMOSPHÉRIQUE C5
Revêtement multicouche capable de résister en espaces extérieurs classés C5 selon la norme ISO 9223. SST (Salt Spray Test) avec temps d’exposition
supérieur de 3000h réalisé sur des vis précédemment vissées et dévissées dans du bois Douglas.
RÉSISTANCE MAXIMALE
Cette vis est indiquée en cas de performances mécaniques élevées requises dans des conditions de corrosivité environnementales et du bois très défavorables.
POINTE 3 THORNS
Grâce à la pointe 3 THORNS, les distances de pose minimales sont réduites. Il est possible d'utiliser plus de vis sur une surface plus petite et des vis plus grandes sur des éléments plus petits, en réduisant coûts et temps.
Documentation
-
Fiche technique
- Fiche technique Chinese
- Fiche technique Croatian
- Fiche technique Czech
- Fiche technique Dutch
- Fiche technique English Eurocode 5
- Fiche technique English USA NDS
- Fiche technique Finnish
- Fiche technique French
- Fiche technique German
- Fiche technique Hungarian
- Fiche technique Italian
- Fiche technique Korean
- Fiche technique Norwegian
- Fiche technique Polish
- Fiche technique Romanian
- Fiche technique Russian
- Fiche technique Slovak
- Fiche technique Slovene
- Fiche technique Spanish
- Fiche technique Swedish

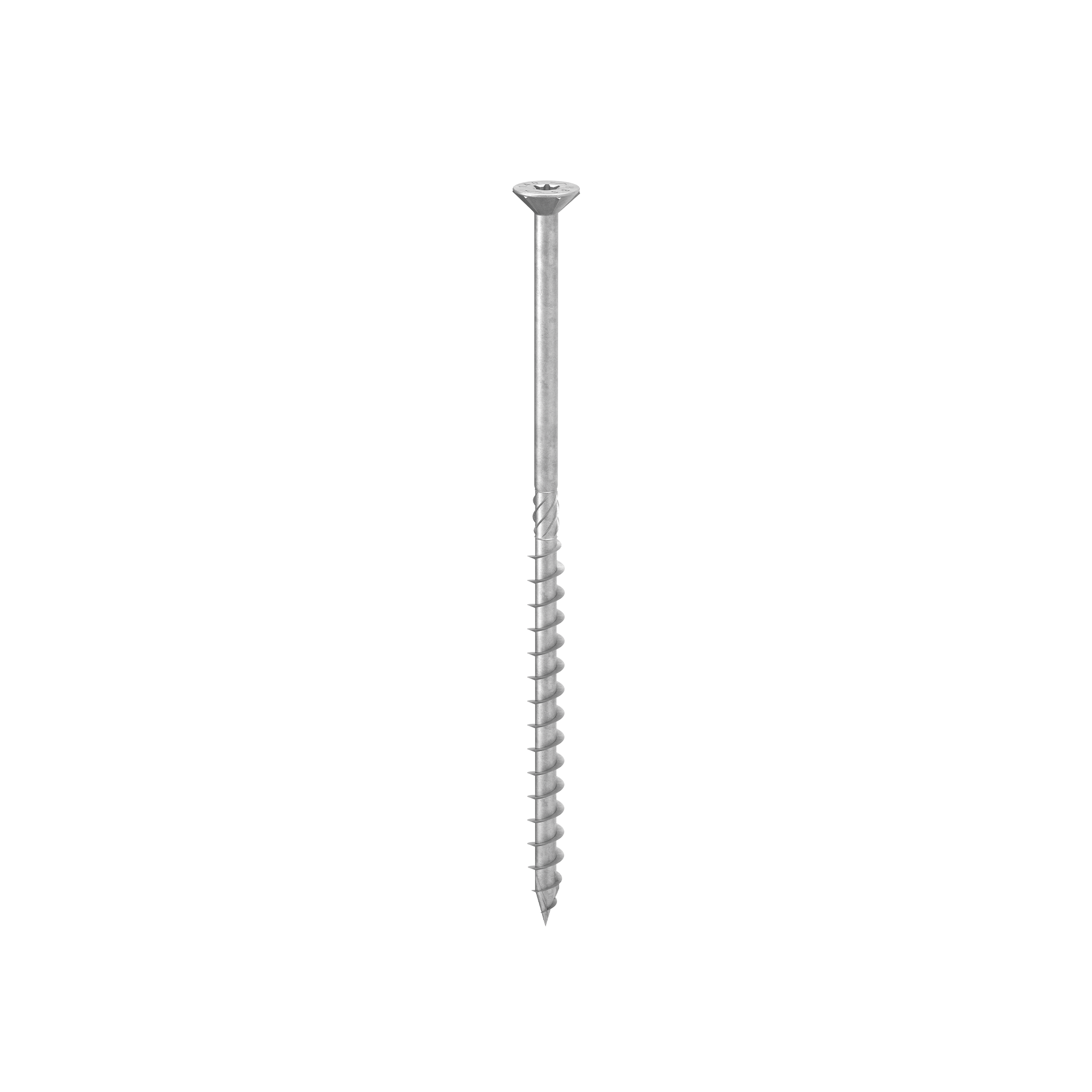

HBS EVO C5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| HBSEVO440C5 | - | 3.5 | 30 | 18 | 0.14 | 1 3/16'' | 11/16'' | TX15 | 500 |
| HBSEVO450C5 | - | 3.5 | 40 | 18 | 0.14 | 1 9/16'' | 11/16'' | TX15 | 400 |
| HBSEVO550C5 | - | 4 | 40 | 24 | 0.16 | 1 9/16'' | 15/16'' | TX20 | 200 |
| HBSEVO560C5 | - | 4 | 50 | 30 | 0.16 | 1 15/16'' | 1 3/16'' | TX20 | 200 |
| HBSEVO570C5 | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 100 |
| HBSEVO580C5 | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX20 | 100 |
| HBSEVO590C5 | - | 5 | 50 | 24 | 0.2 | 1 15/16'' | 15/16'' | TX25 | 100 |
| HBSEVO680C5 | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX25 | 100 |
| HBSEVO3530C5 | - | 5 | 70 | 35 | 0.2 | 2 3/4'' | 1 3/8'' | TX25 | 500 |
| HBSEVO3540C5 | - | 5 | 80 | 40 | 0.2 | 3 1/8'' | 1 9/16'' | TX25 | 500 |
| HBSEVO4550C5 | - | 5 | 90 | 45 | 0.2 | 3 1/2'' | 1 3/4'' | TX25 | 200 |
| HBSEVO4560C5 | - | 5 | 100 | 50 | 0.2 | 4'' | 1 15/16'' | TX25 | 200 |
| HBSEVO5100C5 | - | 6 | 80 | 40 | 0.24 | 3 1/8'' | 1 9/16'' | TX30 | 100 |
| HBSEVO6100C5 | - | 6 | 100 | 50 | 0.24 | 4'' | 1 15/16'' | TX30 | 100 |
| HBSEVO6120C5 | - | 6 | 120 | 60 | 0.24 | 4 3/4'' | 2 3/8'' | TX30 | 100 |
| HBSEVO6140C5 | - | 6 | 140 | 75 | 0.24 | 5 1/2'' | 2 15/16'' | TX30 | 100 |
| HBSEVO6160C5 | - | 6 | 160 | 75 | 0.24 | 6 1/4'' | 2 15/16'' | TX30 | 100 |
| HBSEVO6180C5 | - | 6 | 180 | 75 | 0.24 | 7 1/8'' | 2 15/16'' | TX30 | 100 |
| HBSEVO6200C5 | - | 6 | 200 | 75 | 0.24 | 8'' | 2 15/16'' | TX30 | 100 |
| HBSEVO8100C5 | - | 8 | 100 | 52 | 0.32 | 4'' | 2 1/16'' | TX40 | 100 |
| HBSEVO8120C5 | - | 8 | 120 | 60 | 0.32 | 4 3/4'' | 2 3/8'' | TX40 | 100 |
| HBSEVO8140C5 | - | 8 | 140 | 60 | 0.32 | 5 1/2'' | 2 3/8'' | TX40 | 100 |
| HBSEVO8160C5 | - | 8 | 160 | 80 | 0.32 | 6 1/4'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8180C5 | - | 8 | 180 | 80 | 0.32 | 7 1/8'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8200C5 | - | 8 | 200 | 80 | 0.32 | 8'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8220C5 | - | 8 | 220 | 80 | 0.32 | 8 5/8'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8240C5 | - | 8 | 240 | 80 | 0.32 | 9 1/2'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8280C5 | - | 8 | 280 | 80 | 0.32 | 11'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8320C5 | - | 8 | 320 | 100 | 0.32 | 12 5/8'' | 4'' | TX40 | 100 |
