ANCRAGE POUR BÉTON À VISSER

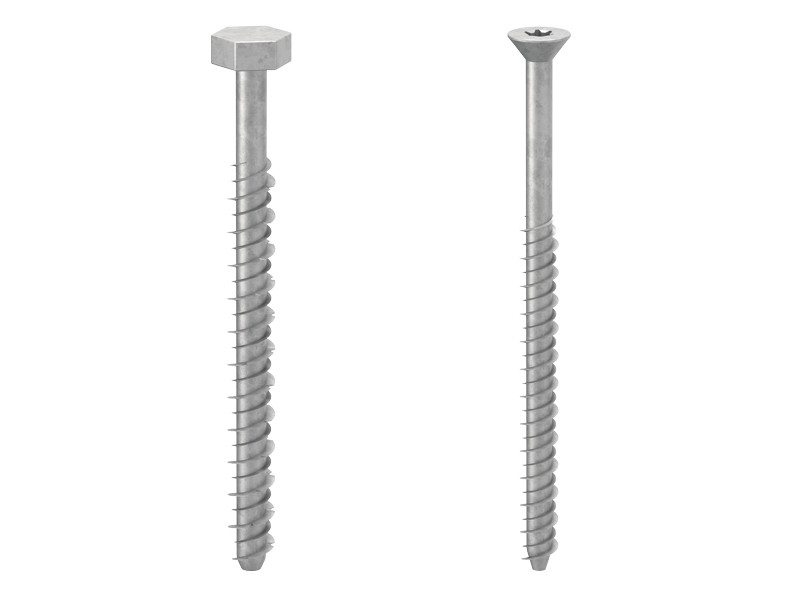

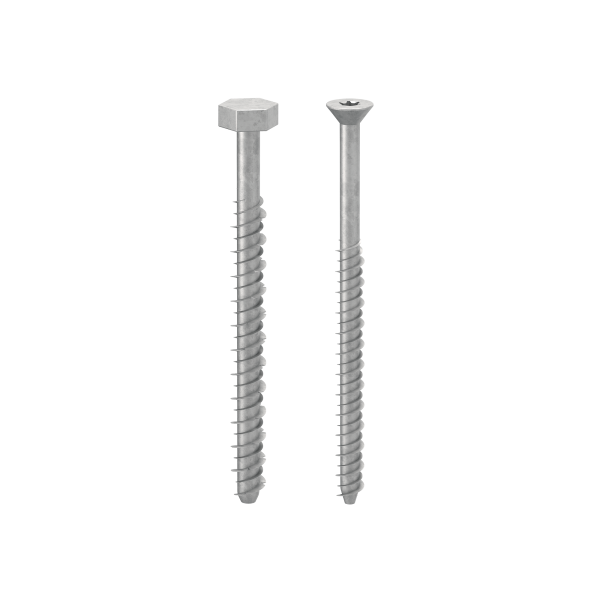

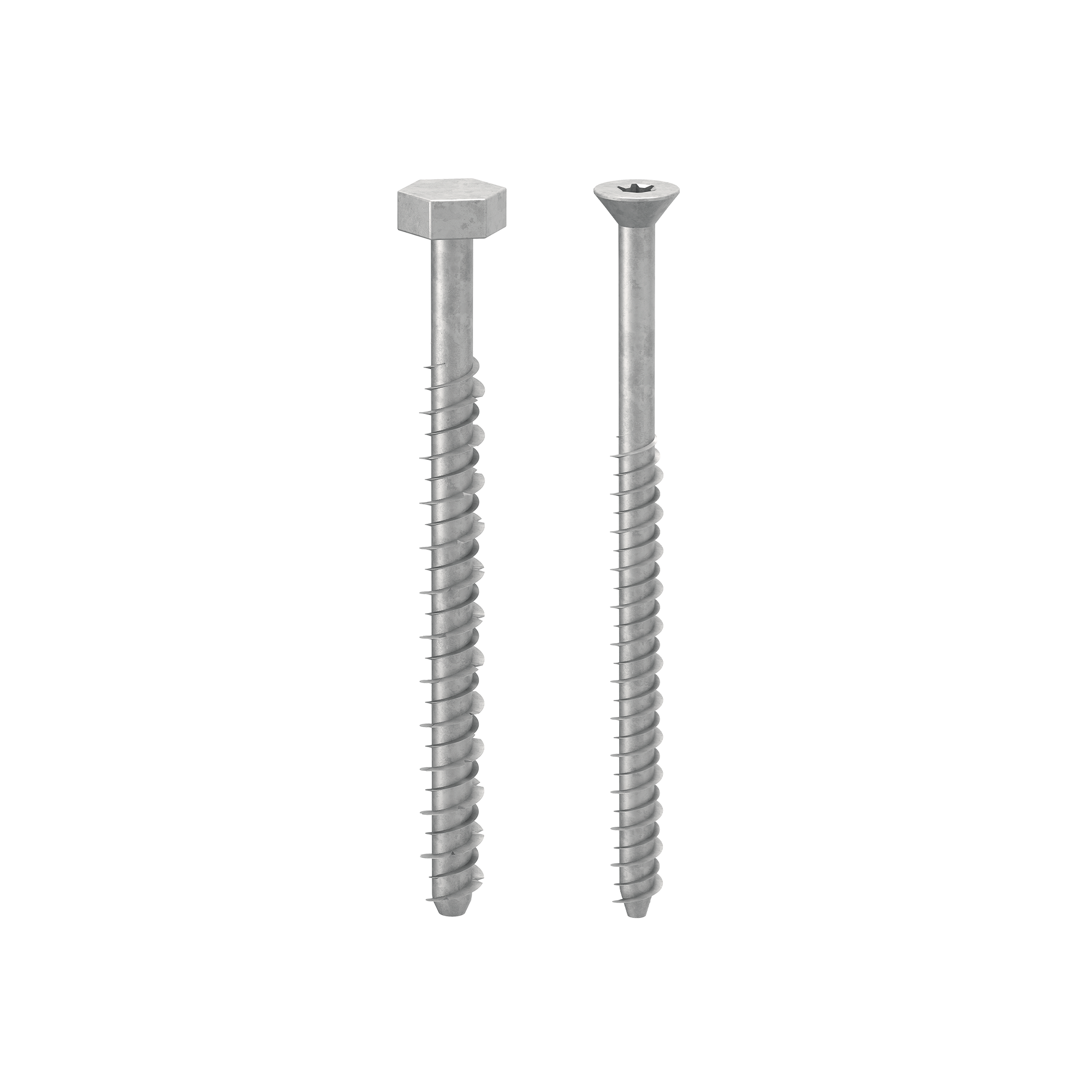

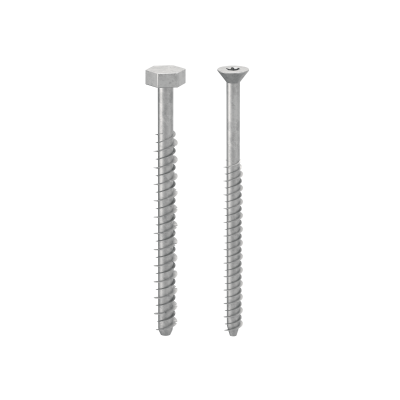

SKR EVO | SKS EVO

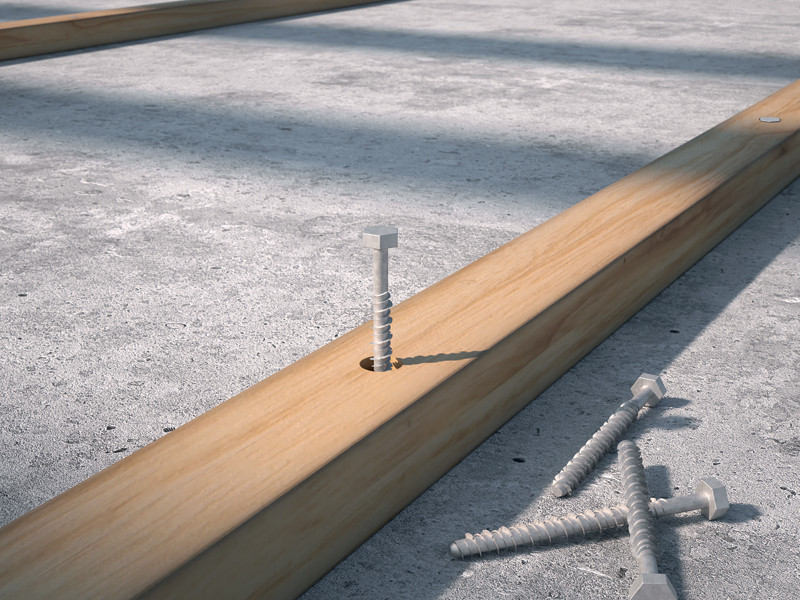

Utilisation simple et rapide. Le filetage spécial exige un pré-perçage de petites dimensions et garantit la fixation sur béton sans création de forces d’expansion dans le béton. Distances minimales réduites.
Revêtement multicouche à base inorganique avec une couche fonctionnelle externe de matrice époxy et paillettes d'aluminium. Conformité à la classe de corrosivité atmosphérique C4 et à la classe de service 3.
Robuste et simple à installer, grâce à la géométrie majorée de la tête hexagonale du SKR.
Documentation
Fiche technique | |
---|---|
Fichier CAO |
SKR EVO
CODE | d₁
[mm]
|
L
[mm]
|
pcs. |
---|---|---|---|
SKREVO7560 | 7.5 | 60 | 50 |
SKREVO7580 | 7.5 | 80 | 50 |
SKREVO75100 | 7.5 | 100 | 50 |
SKREVO1080 | 10 | 80 | 50 |
SKREVO10100 | 10 | 100 | 25 |
SKREVO10120 | 10 | 120 | 25 |
SKREVO10140 | 10 | 140 | 25 |
SKREVO10160 | 10 | 160 | 25 |
SKREVO12100 | 12 | 100 | 25 |
SKREVO12120 | 12 | 120 | 25 |
SKREVO12140 | 12 | 140 | 25 |
SKREVO12160 | 12 | 160 | 25 |
SKREVO12200 | 12 | 200 | 25 |
SKREVO12240 | 12 | 240 | 25 |
SKREVO12280 | 12 | 280 | 25 |
SKREVO12320 | 12 | 320 | 25 |
SKREVO12400 | 12 | 400 | 25 |
SKS EVO
CODE | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
---|---|---|---|---|
SKSEVO7560 | 7.5 | 60 | TX40 | 50 |
SKSEVO7580 | 7.5 | 80 | TX40 | 50 |
SKSEVO75100 | 7.5 | 100 | TX40 | 50 |
SKSEVO75120 | 7.5 | 120 | TX40 | 50 |
SKSEVO75140 | 7.5 | 140 | TX40 | 50 |
SKSEVO75160 | 7.5 | 160 | TX40 | 50 |
