GARDE-CORPS FIXATION SUR TÔLE BAC ACIER
GUARD M

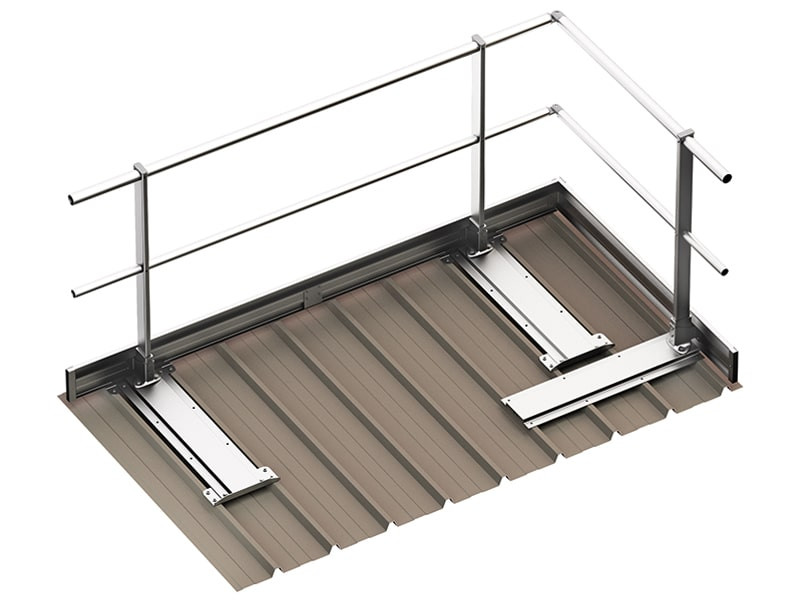

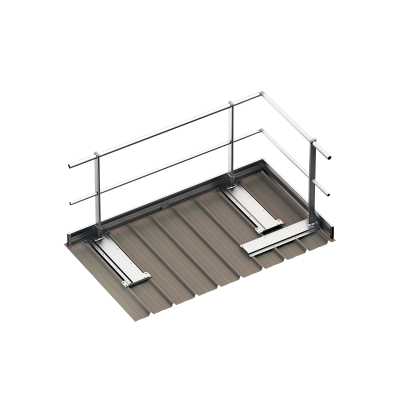

GUARD M est un garde-corps innovant : les plaques de fixation spéciales pour bac d’acier en font un système idéal pour les toitures industrielles.

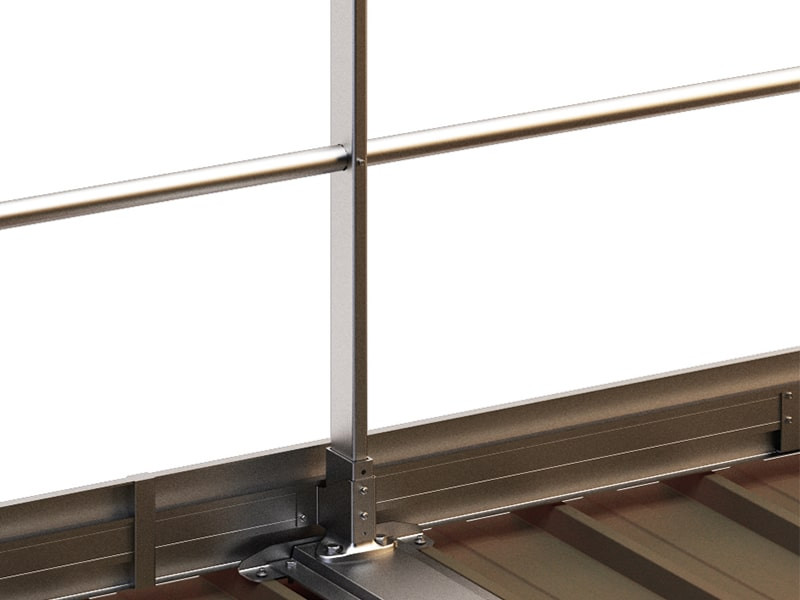

Les plaques de fixation sont disponibles dans les deux tailles d’entraxe les plus communes entre les nervures. Deux types de plaques sont disponibles : longitudinales et transversales par rapport à l’axe des nervures. Le montage est rapide et simple : les composants se fixent par encastrement et avec des vis autoforeuses fournies. En alliage d’aluminium, le garde-corps est extraordinairement léger.
GUARD M, le garde-corps spécifique pour les milieux industriels.
Documentation
| Fiche technique |
|---|
Instructions de pose
| Manuel d'installation |
|---|
LISSES ET SOUS-LISSES
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
MONTANTS
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
| RBGSUP760WH | staight strut 760 mm high without intermediate rail | 1 |
AXE GARDE-PIEDS ET ACCESSOIRES
| CODE | description | pcs. |
|---|---|---|

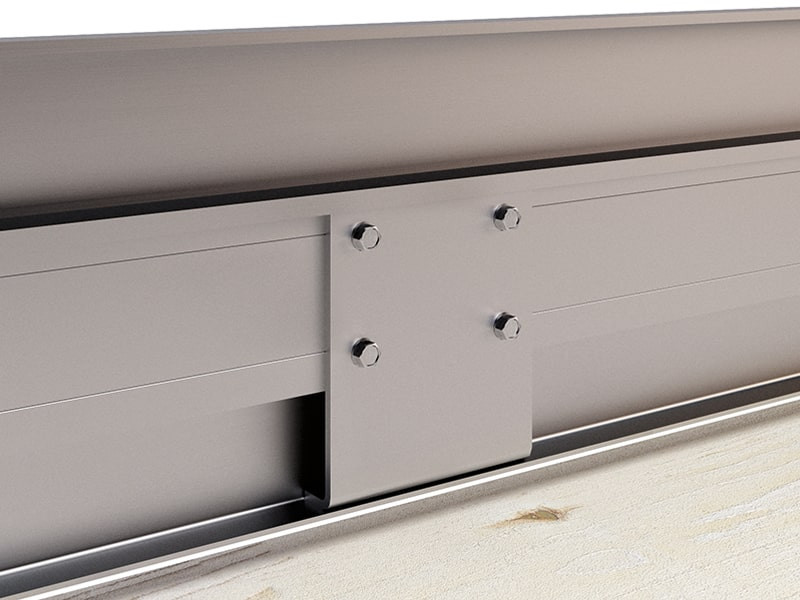

| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBH | support for toe board H = 150 mm | 1 |
BASI PER FISSAGGIO SU LAMIERA GRECATA
| CODE | description | pcs. |
|---|---|---|
| RBGBASE250PA | plate for fastening to trapezoidal sheet metal, pitch 250 mm, parallel to trapezoidal sheet metal (excluding Screws) | 1 |
| RBGBASE333PA | plate for fastening to trapezoidal sheet metal, pitch 333 mm, parallel to trapezoidal sheet metal (excluding Screws) | 1 |
| RBGBASE250PE | plate for fastening to trapezoidal sheet metal, pitch 250 mm, perpendicular to the frets (excluding screws) | 1 |
| RBGBASE333PE | plate for fastening to trapezoidal sheet metal, pitch 333 mm, perpendicular to trapezoidal sheet metal (excluding screws) | 1 |
ACCESSOIRES
| CODE | description | pcs. |
|---|---|---|

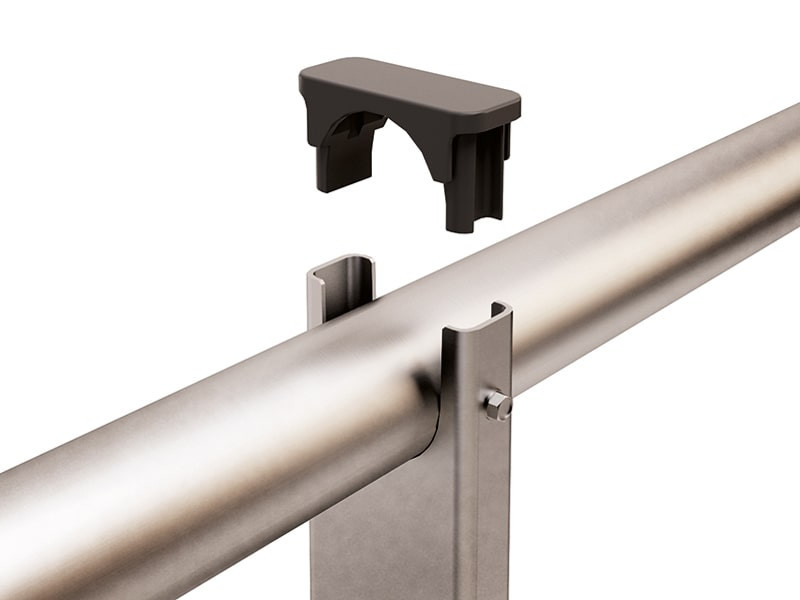

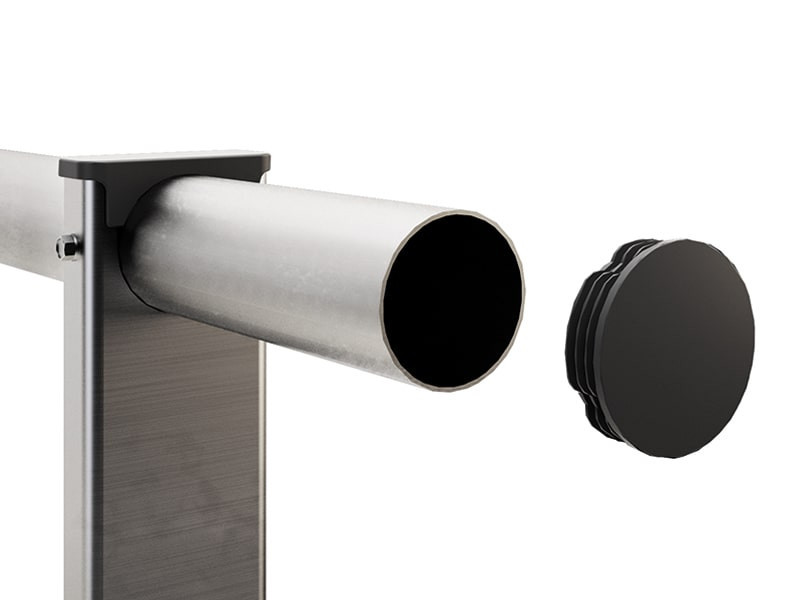

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |

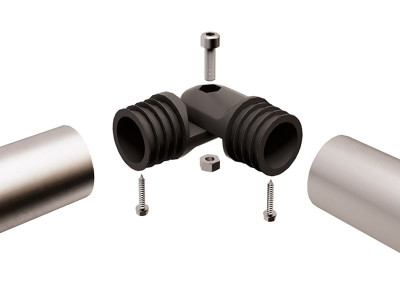

| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
VIS DE FIXATION
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR810 | grub screw M8 x 10 (spare part) | 1 |
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
