GARDE-CORPS FIXATION EN Z
GUARD Z

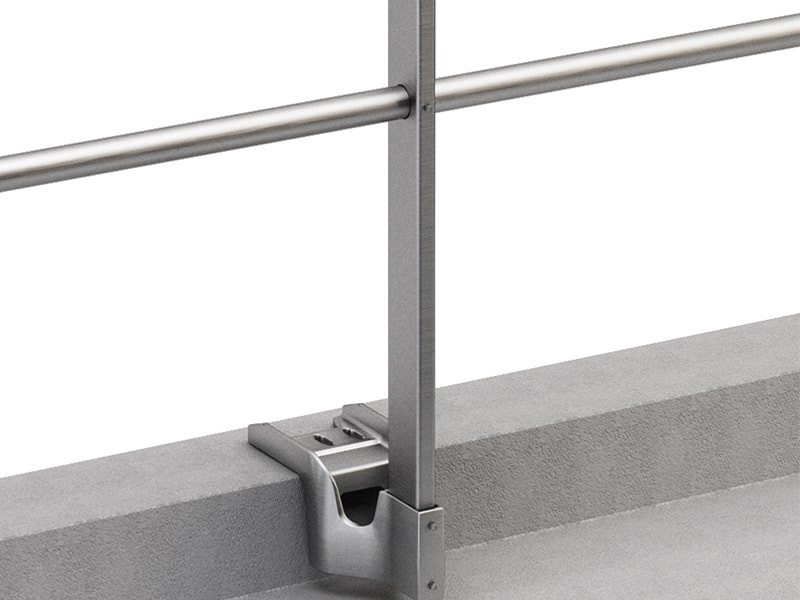

Le garde-corps GUARD Z est fourni avec des étriers de fixation spéciaux en forme Z pour l’installation sur bordure.
Le montage est simple et rapide ; les points de fixation sont positionnés afin de ne pas abîmer la couche imperméable. Les composants se fixent par encastrement et avec des vis autoforeuses fournies. En alliage d’aluminium, le système est extraordinairement léger.
GUARD Z, le garde-corps pour l’installation sur bordure.
Documentation
| Fiche technique |
|---|
Instructions de pose
| Manuel d'installation |
|---|
LISSES ET SOUS-LISSES
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
MONTANTS - GUARD Z
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP760WH | staight strut 760 mm high without intermediate rail | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
BASES STANDARDS - GUARD Z
| CODE | description | pcs. |
|---|---|---|
| RBGBASEZ | standard aluminium base Z for perimeter wall without insulation GUARD Z | 1 |
| RBGBASEZ70 | GUARD Z base with 70 mm thick insulation | 1 |
| RBGBASEZ100 | GUARD Z base with 100 mm thick insulation | 1 |
| RBGBASEZ130 | GUARD Z base with 130 mm thick insulation | 1 |
| RBGBASEZ160 | GUARD Z base with 160 mm thick insulation | 1 |
ACCESSOIRES
| CODE | description | pcs. |
|---|---|---|
| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
VIS DE FIXATION - GUARD Z
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR810 | grub screw M8 x 10 (spare part) | 1 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
