STEP UP

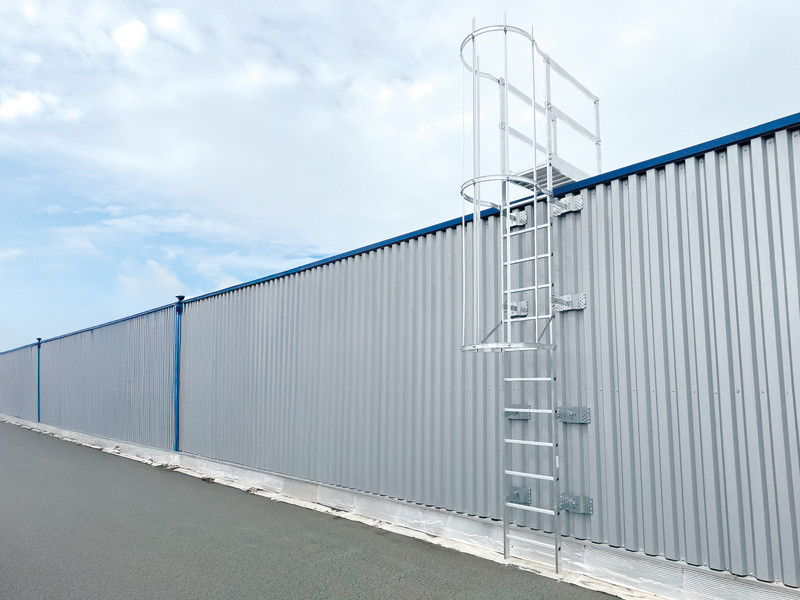

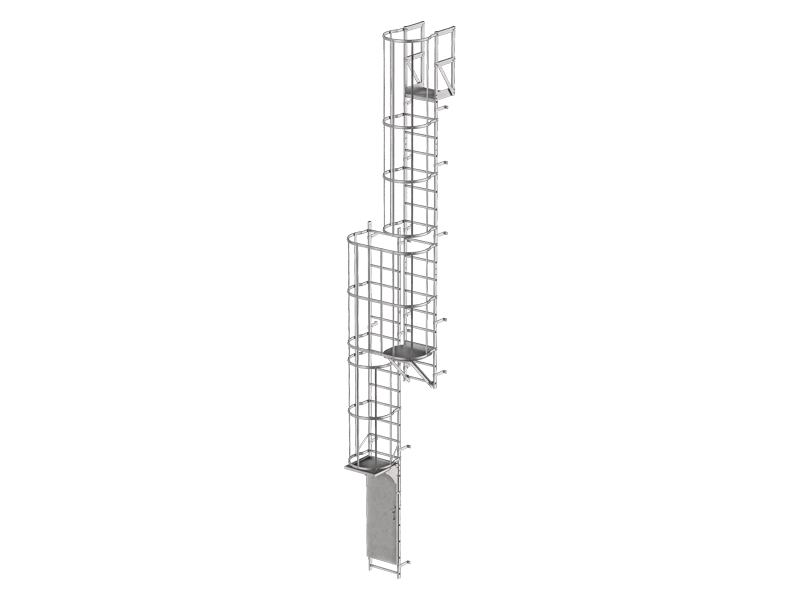

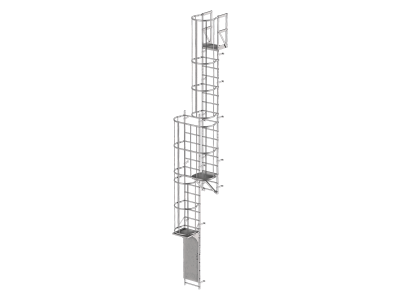

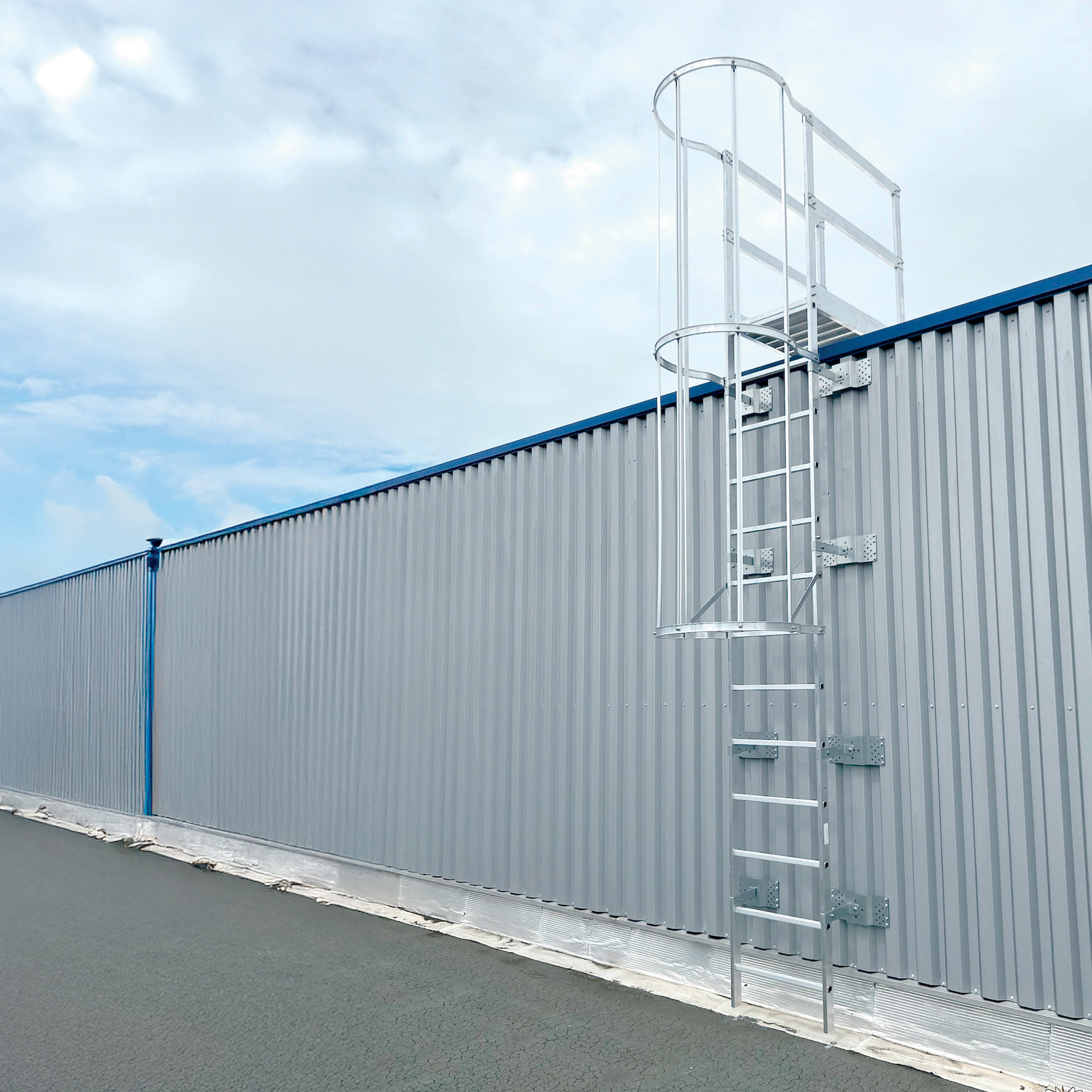

ÉCHELLE À CRINOLINE

Réalisées en alliage d'aluminium, elles offrent une forte résistance mécanique et à la corrosion et aux agents atmosphériques.

Elles garantissent une sécurité maximale à l'utilisateur et la sérénité d'un produit fiable et facile à monter à l'installateur.

Grâce à la vaste gamme de composants, le système modulaire répond à tout besoin de conception.

Contacter l'agent

Documentation
Codes et dimensions

MODULI SCALA

CODE	description	B [mm]	L [mm]	H [mm]	pcs.
STEPMOD120	ladder module 1,20 m - 4 steps	65	636	1200	1
STEPMOD150	ladder module 1,50 m - 5 steps	65	636	1500	1
STEPMOD180	ladder module 1,80 m - 6 steps	65	636	1800	1
STEPMOD210	ladder module 2,10 m - 7 steps	65	636	2100	1
STEPMOD240	ladder module 2,40 m - 8 steps	65	636	2400	1
STEPMODCAP	pair of upper upright caps	-	-	-	1
STEPMODJUN	pair of ladder-to-ladder joints	21	62	240	1

USCITE FRONTALI

CODE	description	B [mm]	L [mm]	H [mm]	pcs.
STEPOUT160	module with front exit rail 1,6 m - 2 steps	65	636	1595	1
STEPOUT190	module with front exit rail 1,9 m - 3 steps	65	636	1895	1
STEPOUT220	module with front exit rail 2,2 m - 4 steps	65	636	2195	1
STEPOUT250	module with front exit rail 2,5 m - 5 steps	65	636	2495	1
STEPOUTJUN	pair of ladder joints-front exit rail	21	62	240	1

GABBIA

CODE	description	B [mm]	L [mm]	H [mm]	pcs.
STEPBARJUN	kit with 5 rod joints for cage	18	22	80	1

ANELLI

CODE	description	B [mm]	L [mm]	H [mm]	pcs.
STEPRINGIT	cage ring Leg. Decree 81/2008 - UNI 11962:2024	660	636	44	1
STEPRINGEU	cage ring EN 14122	760	636	44	1
STEPRINGJUN	pair of ladder-to-ring joints for cage	36	61	36	1
STEPSUPRINGEU	pair of reinforcements between steps and safety cage	340	51	340	1

STAFFE

CODE	description	B [mm]	L [mm]	H [mm]	pcs.
STEPBRAF150	pair of mounting brackets for a 150 mm wall distance	269	88	50	1
STEPBRAV400	pair of mounting brackets for an adjustable wall distance - max. 400 mm	474	88	55	1
STEPBRAV600	pair of mounting brackets for an adjustable wall distance - max. 600 mm	674	88	55	1
STEPBRAMET	pair of mounting plates for trapezoidal metal (fasteners included)	150	358	32	1

TAPPI

CODE	description	pcs.
STEPMODCAP	pair of upper upright caps	1
STEPBARCAP	kit with 5 rod caps	1

PEDANA PER SDOPPIAMENTO

CODE	description	pcs.
STEPBOARIT	splitting platform Legislative Decree 81/2008 - UNI 11962:2024	1
STEPBOAREU	splitting platform EN 14122	1

TARGHETTA

CODE	description	pcs.
STEPTARGAEU	label EN 14122-4 + EN manual	1
STEPTARGAIT	label Leg. Decree 81/2008 - UNI 11962:2024 + IT manual	1

ACCESSO SCALA

CODE	description	pcs.
STEPTRAPEU	safety gate for ladder access EN 14122	1
STEPTRAPIT	safety gate for ladder access Legislative Decree 81/2008 - UNI 11962:2024	1
STEPDOOR90	half-height safety door complete with fasteners and door stop	1
STEPDOOR180	safety door	1
STEPDOORUP	upper part of safety door	1

CHIUSURA

CODE	description	pcs.
STEPCOVEREU	metal sheet to cover the safety cage EN 14122	1
STEPCOVERIT	metal sheet to cover the safety cage Legislative Decree 81/2008 - UNI 11962:2024	1
STEPCOVERSIDE	pair of side cage covers	1

KIT PROTEZIONE

CODE	description	pcs.
STEPLAND300	300 mm platform kit with side protection	1
STEPLAND500	500 mm platform kit with side protection	1
STEPLAND800	800 mm platform kit with side protection	1
STEPLAND1000	1000 mm platform kit with side protection	1

ACCESSORI E BASI

CODE	description	pcs.
STEPDOORDIST	-	1
STEPFEETREG	pair of adjustable support feet with holes for possible ground fastening	1
STEPFEETHING	pair of hinged feet with adjustable supports	1

CANCELLETTI

CODE	description	pcs.
STEPGATE550	landing gate H=550 mm (fasteners included)	1
STEPGATEKIT	fastening kit for duplication of STEPGATE550 gate	1
